HOWO 5Ton truck mounted hydraulic lifting crane

HOWO 5Ton truck mounted hydraulic lifting crane
HOWO 4x2 cargo truck with 5T crane
HOWO 140HP cargo truck with 5T crane
HOWO light cargo truck with 5T crane
HOWO 5Ton truck mounted hydraulic lifting crane
HOWO 5Ton truck mounted knuckle crane
HOWO light 5Ton truck mounted knuckle crane
HOWO 140HP 5Ton truck mounted knuckle crane
HOWO 4x2 5Ton truck mounted knuckle crane
HOWO light 4x2 5Ton truck mounted knuckle crane
HOWO light 140HP 5Ton truck mounted knuckle crane
HOWO Lorry Cargo Truck With Knuckle Crane

HOWO 5Ton truck mounted hydraulic lifting crane

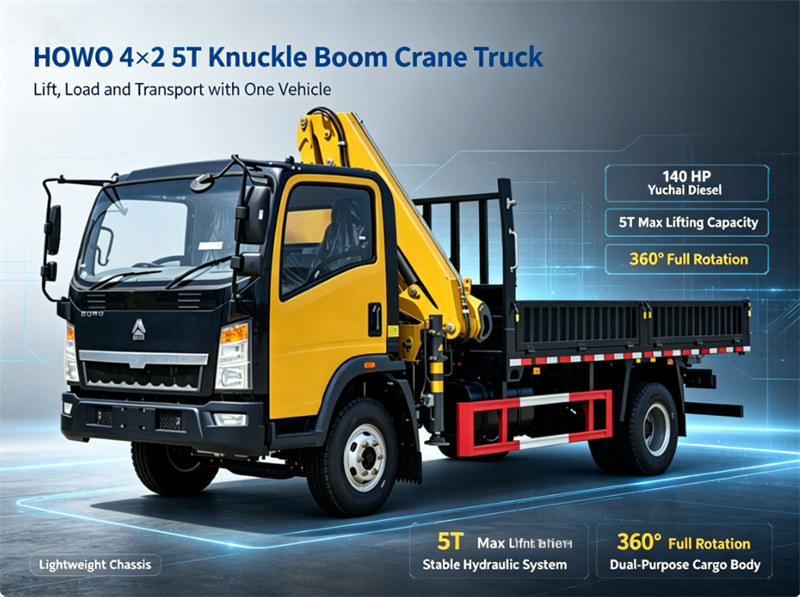

The HOWO 4×2 5T knuckle crane truck blends brute strength and smart practicality.Beneath the hood lies a 140 HP Yuchai diesel engine, capable of tackling all kinds of construction and hauling jobs. The three-person HOWO cab features full heating & cooling AC to keep operators comfortable all day long.Its foldable knuckle crane lifts up to 5 tons and rotates a full 360 degrees for flexible loading & unloading. Weighing 1700 kg with a 750mm installation footprint, it installs effortlessly on truck frames. The control system supports English and other languages, friendly for international users worldwide.



  • Capacitate de lucru :

    10 tons

  • Tipul cabinei :

    HOWO single cabin, with one sleeper

  • Sistem de acționare :

    4x2

  • Ampatament (mm) :

    3800

  • Specific motorului :

    YC4E140-33

  • Cutie de viteze :

    WLY6TS55, 6 forwards & 1 reverses

  • Ax față (kg) :

    4500

  • Punte spate (kg) :

    7500
Întreabă acum
CATEGORII DE PRODUSE
Produse noi

The HOWO 4×2 5T knuckle crane truck blends brute strength and smart practicality.Beneath the hood lies a 140 HP Yuchai diesel engine, capable of tackling all kinds of construction and hauling jobs. The three-person HOWO cab features full heating & cooling AC to keep operators comfortable all day long.

Its foldable knuckle crane lifts up to 5 tons and rotates a full 360 degrees for flexible loading & unloading. Weighing 1700 kg with a 750mm installation footprint, it installs effortlessly on truck frames. The control system supports English and other languages, friendly for international users worldwide.

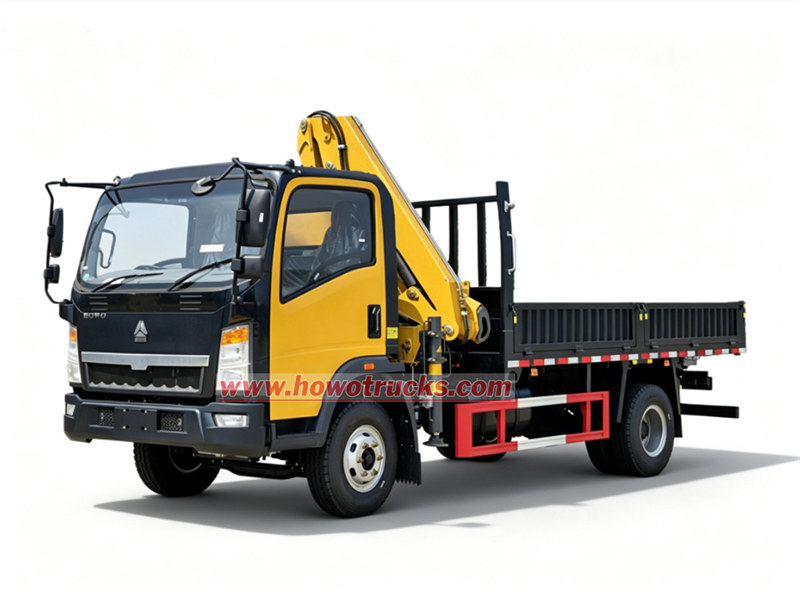

HOWO 5 Ton truck mounted hydraulic lifting crane

( HOWO 4x2 Heavy Cargo Truck 5T Crane )



HOWO 5Ton truck mounted hydraulic lifting crane



✦Ⅰ.Product Definition and Introduction « « «

1. Truck Chassis: Sinotruk HOWO truck chassis, 4X2,4x4 model

                              YC model with 140HP and Euro 2,3



2. Cargo material: 5mm thick high-quality steel for prolonged service lier
                               carbon steel, aluminum alloy or stainless steel can be choose.



3. Crane Brand: XCMG, Palfinger, HIAB, Chusheng, etc.



4.  Optional design: such as kunckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.





✦ Ⅱ.Product Parameter For HOWO 10T Crane Boom Truck  « « «



HOWO 5Ton truck mounted hydraulic lifting crane

Best Choice,HOWO Trucks

⇓ ⇓ ⇓





HOWO Cargo Truck With Knuckle Crane

Overall dimensions

6300×2500×3250(mm)

Cargo box dimensions

4800x2380x550(mm)

Gross vehicle weight

10,300 kg

Rated Load capacity

5000 kg

Chassis specifications

Chassis Brand

HOWO

Color

According to wish

Engine

Fuel Type

Diesel

Model

YC4E140-33

Horse power

140 HP

Displacement

4.257 L

Engine Type

4 cylinders in line, water cooling, intercooled, turbocharged

Emission Standard

Euro 3

Wheel Base(mm)

4500

Driving type

4x2

Type & Size of Tyre

8.25R20 (6+1pcs)

Air Conditional

Heating and cooling air conditioning

Cab

Single-row tilted cab

Gear Box

WLY6TS55 6 speed forward with 1 reverse, manual

Brake

Air brake

Steering Wheel

Left Hand Drive with power-assisted

Crane specifications

Crane brand

CS Trucks Group

Crane weight

2000 kg

Max. lifting weight

500 kg

Max. working height

8 m

Max oil flow of hydraulic system

25 L/min

Rated pressure of hydraulic system

28 Mpa

Oil tank capacity

100 L

Installation space

750 mm

Max. working radius

7.92 m

Max lifting Moment

10.5 T.M

Rotation angle

360°, all rotation

Boom

3 sections

Others

Cargo body

High-quality steel

Payload

6 tons

Operation Type

Manually operated hydraulic valve

Type

Mechanical



HOWO 4×2 Telescopic Boom Crane Truck

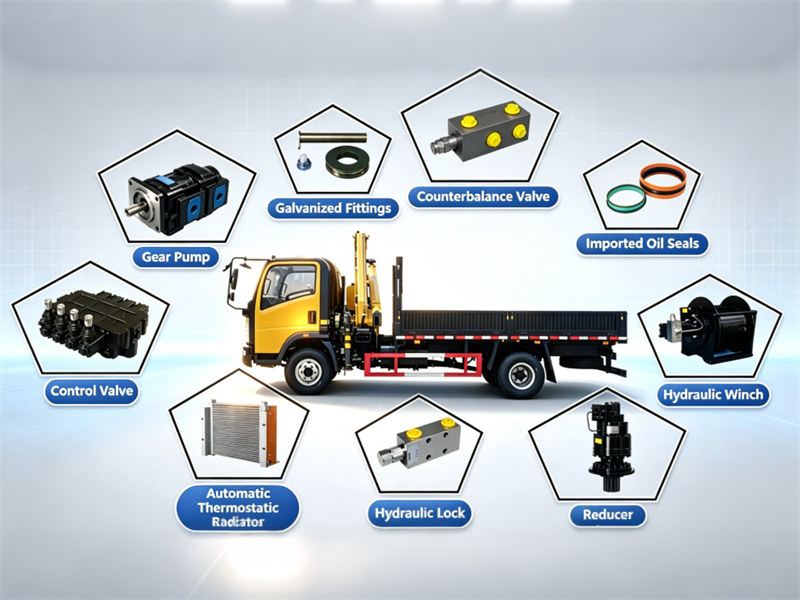

✦ Ⅲ.Mian Part For Crane Boom « « «

  • ♦ 1.Gear Pump Adopt premium cast iron double gear pump with floating clearance compensation tech; high efficiency, high pressure, heat & vibration resistant for long service life.

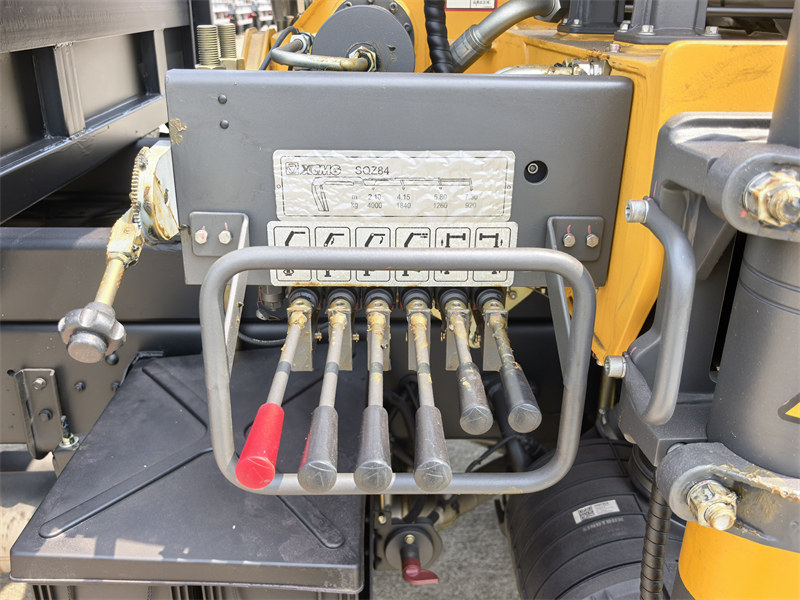

    ♦ 2.Control Valve Professional hydraulic control valve, precise action regulation, stable long-hour operation & automatic flow adjustment based on loads.

    ♦ 3.Hydraulic Lock From certified top-tier hydraulic maker (ISO & CE certified, supplier for XCMG/Lovol), stable locking performance with full hydraulic system solutions available.

    ♦ 4.Hydraulic Winch Welded high-strength drum; German imported disc brake springs & 20CrMnTi carburized gears; British sealing parts + load-sharing planetary reducer for heavy-load durability.

    ♦ 5.Galvanized Fittings Galvanized crane fittings for strong anti-rust & anti-corrosion performance, neat finish and longer service cycle.

    ♦ 6.Imported Oil Seals UK Hallite imported oil seals for crane cylinders, superior sealing property, leak-free operation and extended service lifespan.

    ♦ 7.Counterbalance Valve Anti-sinking locking design stops boom drift & slow sagging under load; enables smooth boom movement with minimal internal leakage.

    ♦ 8.Reducer Precision forged housing + imported disc springs & hardened 20CrMnTi gears; load-sharing planetary structure for great load capacity and reliability.

    ♦ 9.Automatic Thermostatic Radiator Auto temperature control high-efficiency radiator; keeps hydraulic oil cool, avoids overheating failures and lengthens service life of all hydraulic parts.


HOWO light 5 crane lorry truck



✦ Ⅳ.Core Function For HOWO Knuckle Crane Truck « « «

  • ♦ Full hydraulic power drive for all crane functions: hoisting, luffing, boom telescoping, slewing, and outrigger vertical/horizontal travel.
  • ♦ High-pressure oil delivered from hydraulic pump is distributed through control valves to corresponding hydraulic motors and cylinders to execute all lifting movements.
  • ♦ Pilot-operated check valves integrated in lower valve bank lock pressure inside rod-side chambers of horizontal outrigger cylinders, preventing accidental outrigger extension during transit and safeguarding driving safety.



HOWO M7 10tons crane truck

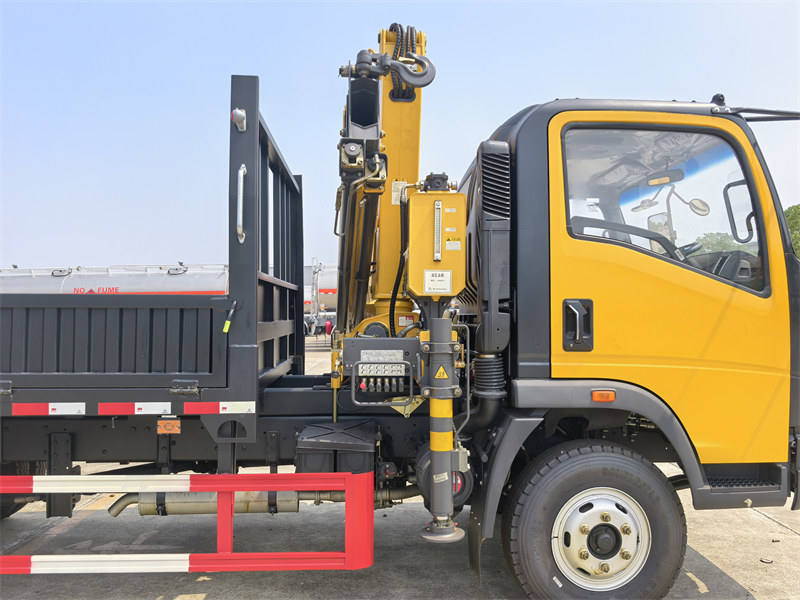

HOWO light 5tons knuckle crane truck

( Mian Details For The 5tons Crane )

⇓ ⇓ ⇓



Max. lifting moment

10.5 T.M

Max. lifting capacity

5000 kg

Max. hydraulic outreach

8.01 m

Slewing angle

360°

Slewing torque

1.58 T.M

Stabilizer spread

5210 mm

Fitting space required

1100 mm

Width folded

2480 mm

Max. operating pressure

28 MPa

Recommended pump capacity

25L/min

Dead weight

2035 kg

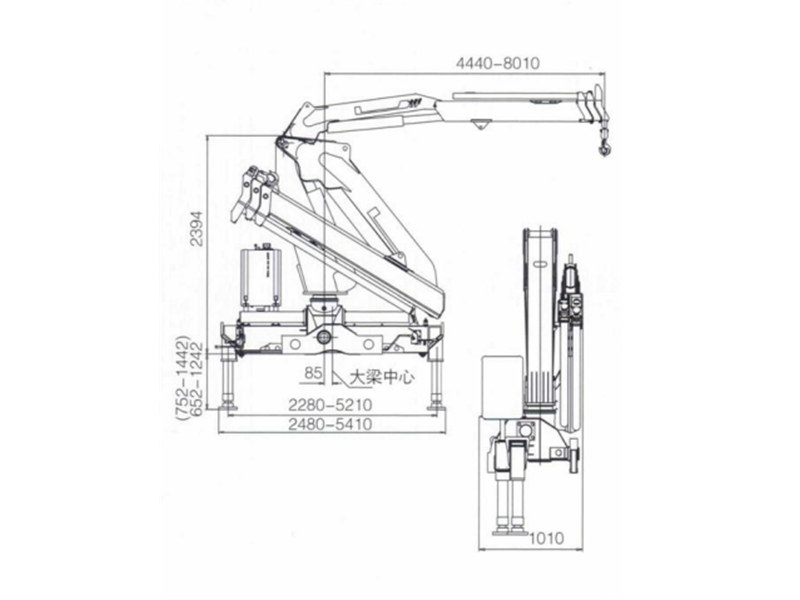

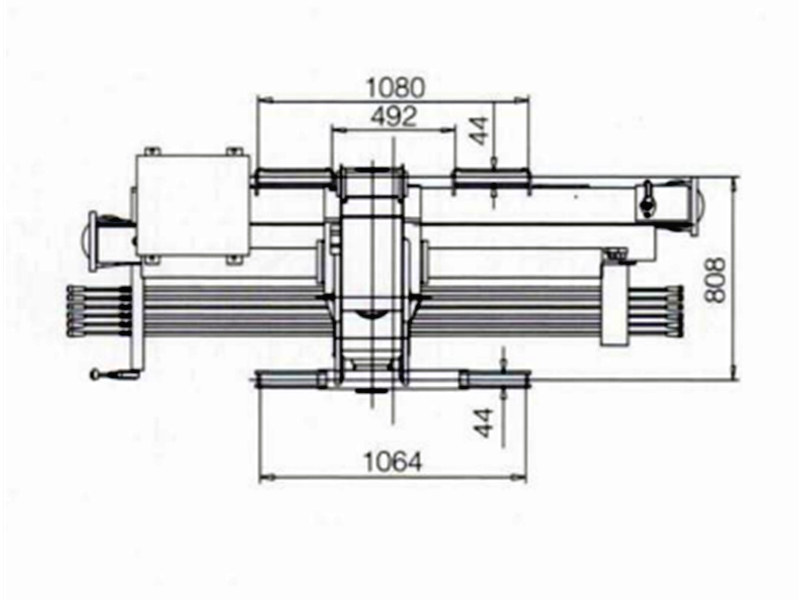

(Overall Dimentions For The Crane)

 ⇓ ⇓ ⇓

HOWO 5tons knuckle crane truck

HOWO 5tons knuckle crane truck

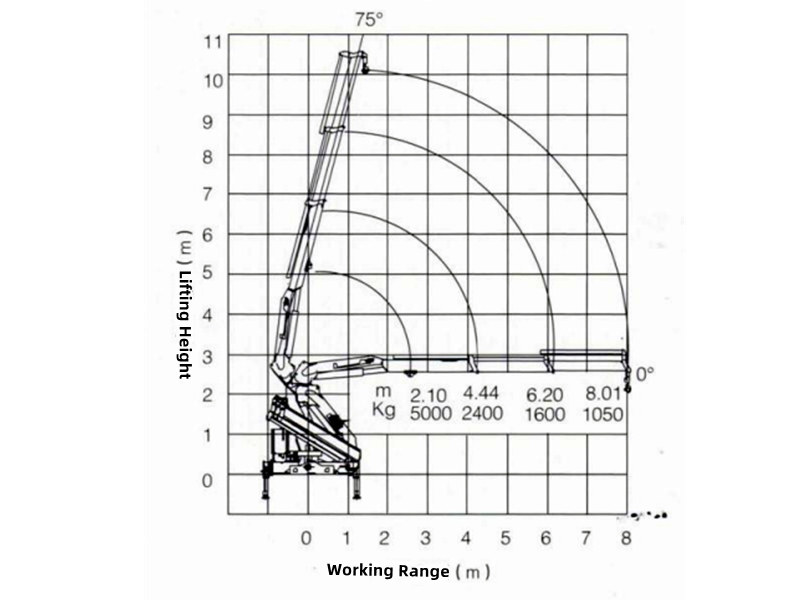

( Torque display diagram ）

 ⇓ ⇓ ⇓

HOWO 5tons knuckle crane truck



✦ Ⅴ.Advantage For HOWO Knuckle Crane Lorry Truck « « «



HOWO 5Ton truck mounted hydraulic lifting crane

1. Lightweight HOWO 4×2 Chassis, Higher Actual Payload

♦ Adopt mature HOWO lightweight chassis framework, curb weight is reasonably controlled, gross vehicle weight limited to 10300kg while achieving 5t rated loading capacity.

♦ Single-row tilt cab reduces front-end weight further, matching knuckle crane installation layout perfectly.

♦ 4-cylinder inline Yuchai 140HP turbo diesel engine delivers sufficient power without redundant weight.



HOWO 5Ton truck mounted hydraulic lifting crane

2. High-Performance 3-Section Knuckle Boom Crane, Flexible & Powerful Lifting

♦ Full 360° unlimited rotary design + 7.92m maximum working radius, no dead-angle operation.

♦ Maximum working height reaches 8m, adapts to warehouse loading, construction hoisting, roadside cargo transfer multiple scenarios.

♦ Lifting moment up to 10.5 T·M, peak lifting capacity 5 tons, stable hoisting performance.

♦ Crane self-weight only 2000kg, lightweight crane structure avoids excessive occupation of chassis load capacity.

♦ Three-section folding knuckle boom shrinks greatly when folded,  retains complete cargo carrying function, realize lifting + cargo transportation dual purpose.



HOWO 5Ton truck mounted hydraulic lifting crane

3. Stable & Durable Hydraulic Crane System

♦ Hydraulic system rated working pressure 28MPa, matched with 25L/min rated flow, lifting action smooth without jitter.

♦ Equipped with dedicated hydraulic lock & balance valve to prevent boom slipping caused by load falling, greatly improving operation safety.

♦ Supporting imported oil seals effectively avoids oil leakage, reduces later maintenance frequency.

♦ Manual hydraulic valve control system is simple to operate, low failure rate, suitable for construction sites, mountain areas and other complex working environments lacking professional operators.



⇒ Products--100% Customized Level One!
⇒ Transportation--100% Safety, Convenience, Efficient!
⇒ Services--7days + 24hours Safetify Service!


»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



China professional HOWO special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely

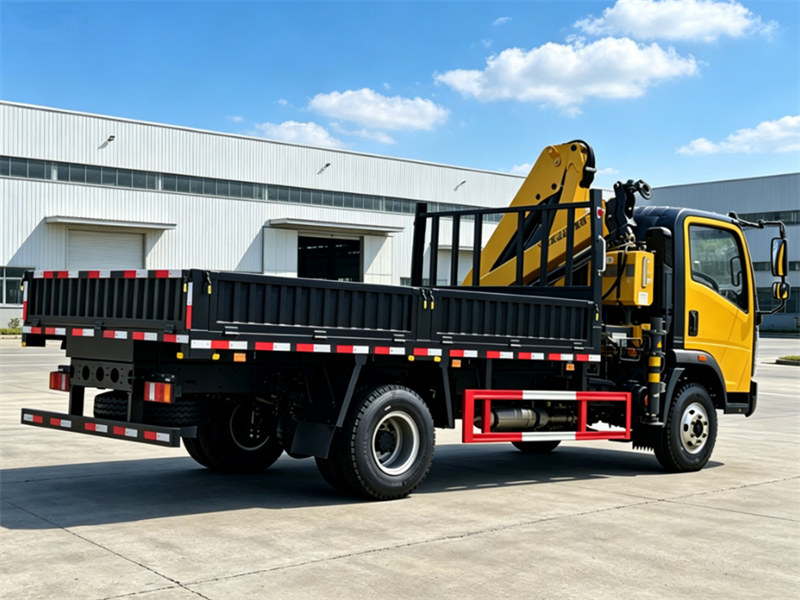

HOWO 4x2 5 tons knuckle crane truck



HOWO 4x2 5 tons knuckle crane truck
